SB Brace Frame in action
Your benefits at a glance-

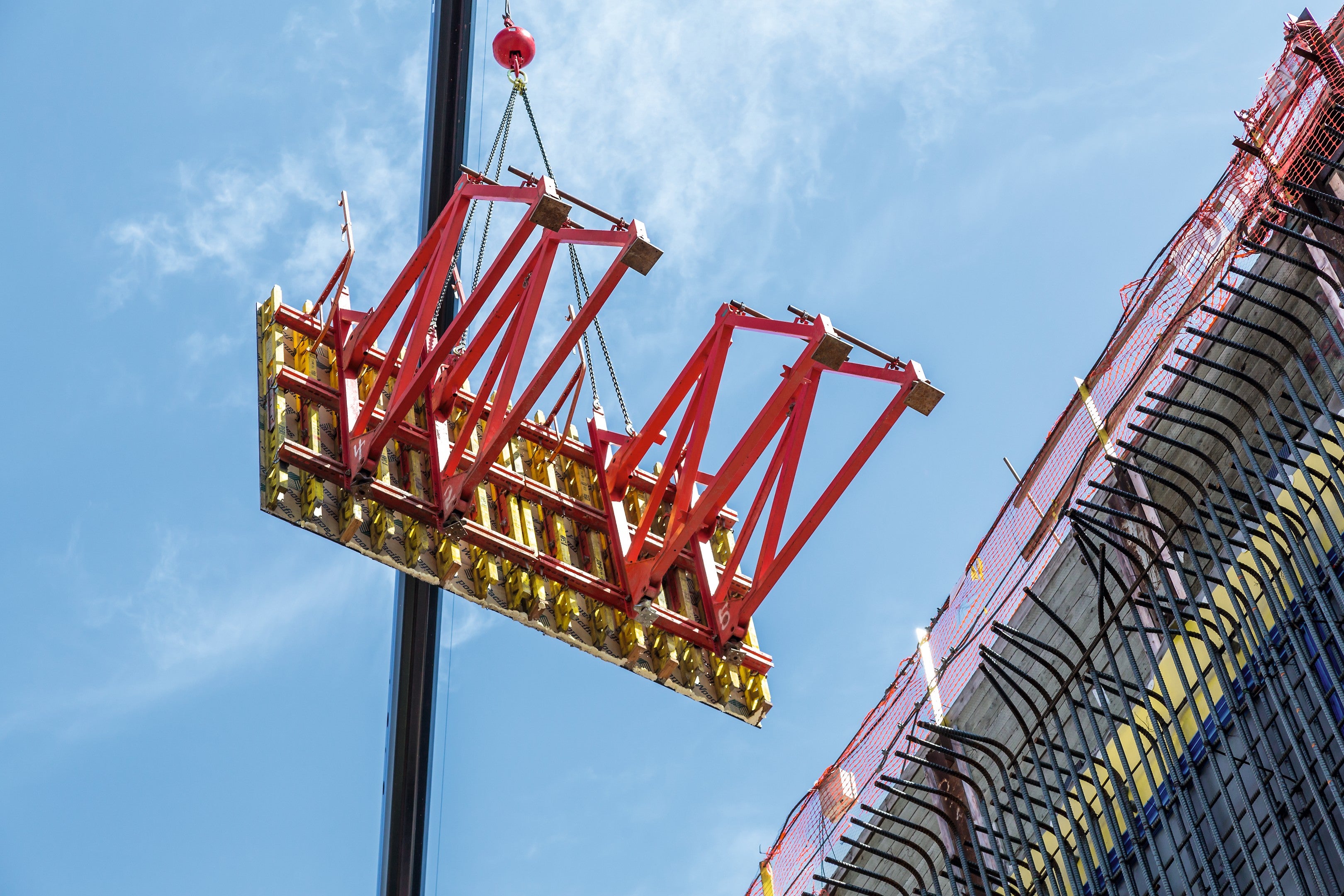

![SB Brace II]( "SB Brace II")
Can be used with all PERI wall formwork systems.
-

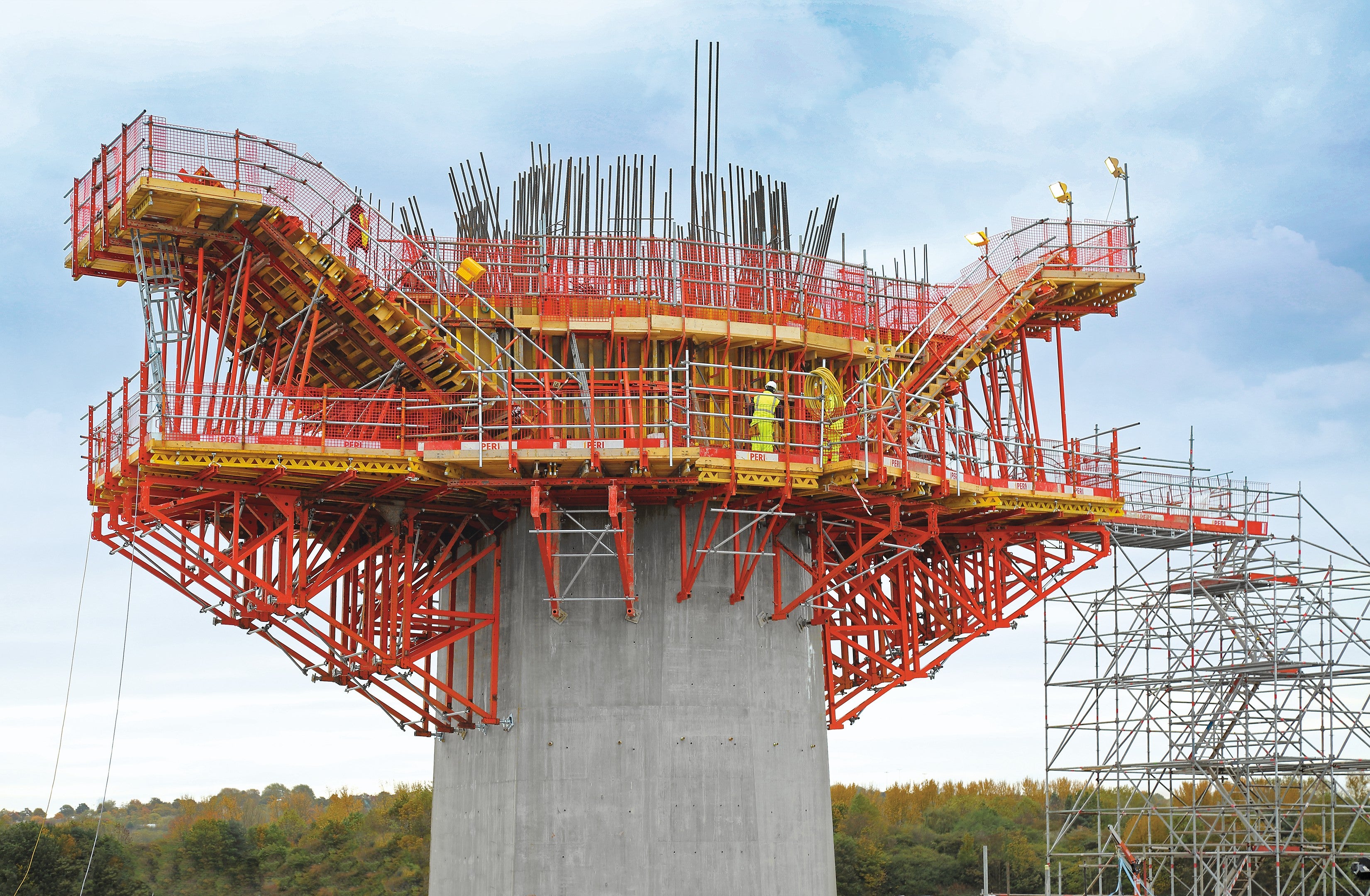

![SB Brace Frame III]( "SB Brace Frame III")
The SB Brace Frame can also be used as a horizontal heavy-duty bracked.
-

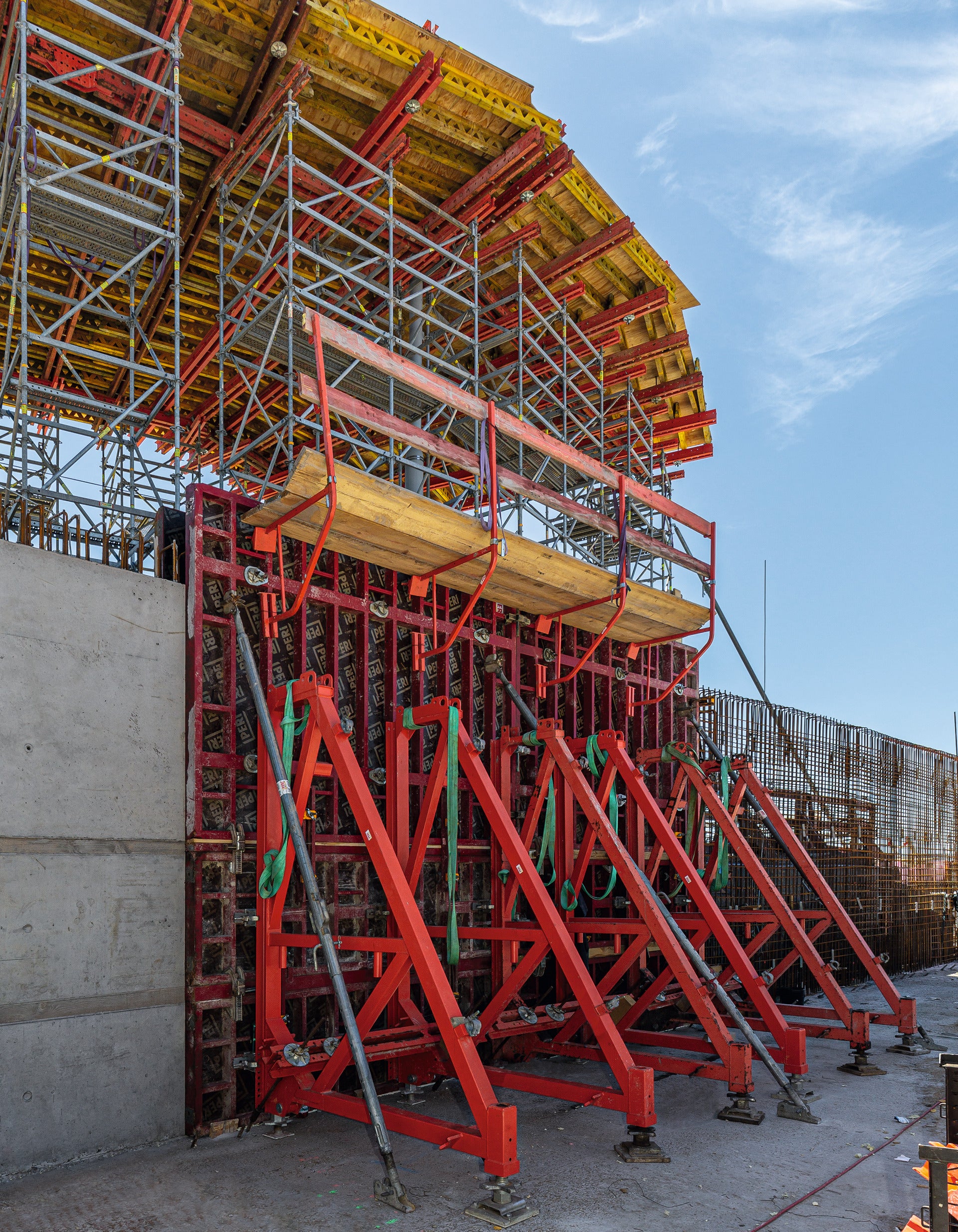

![SB Brace I]( "SB Brace I")
Different tie systems can be used in accordance with the permissible tension force.
Product Data Sheet
System type
Support Frame
Dimensions
Concreting height: 3.00 m to 8.75 m
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.
