Safe and fast assembly due to ledger with Gravity Lock.

PERI UP Rosett Modular Scaffold

Working Scaffold for complicated building shapes

Working Scaffold for complicated building shapes

Overview

With PERI UP Rosett, complicated geometries can also be scaffolded cost-effectively, e.g. old buildings with bay windows and cantilevers. The Rosett nodes on the standards facilitate easy and safe assembly whilst the steel decks have a particularly high load-bearing capacity.

The perfectly matched system and component dimensions allow any combination of frame scaffolding with modular scaffolding.The integrated protection against lifting provides access ways of equal height and without any obstacles. The requirements regarding working safety also remain fulfilled: the guardrail heights are according to the regulations and toe boards can be fitted from end to end.

PERI UP Rosett meets the requirements of the European standards EN 12810 and EN 12811 and fulfills the requirements for protection scaffolds according to DIN 4420-1 (safety scaffolds and roof safety scaffolds for fall heights ≤ 2.0 m, protection fans)

PERI UP Rosett 72
System width 72 cm
Decking area width 64 cm
Load Classes 1 to 4
PERI UP Rosett 104
System width 104 cm
Decking area width 96 cm
Load Classes 1 to 6

Practically unlimited
Optimal adjustment possibilities regarding height, width and length

Extremely easy to assemble
Fast and safe assembly with the gravity lock

Reassuringly safe
Without any additional components due to the integrated lock against lift off

PERI UP in action

Your benefits at a glance

Safe and fast assembly due to ledger with Gravity Lock.

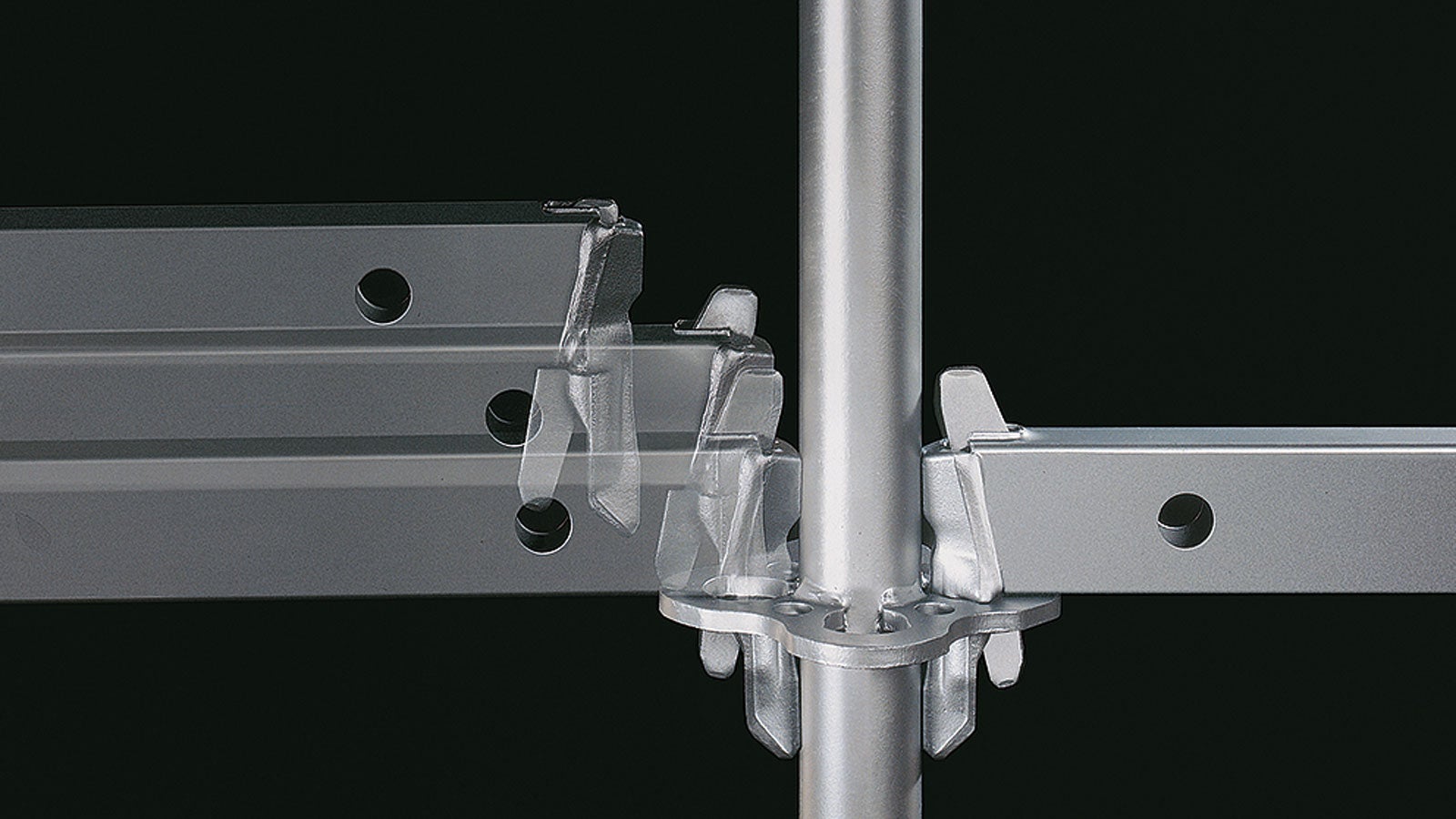

The gravity lock facilitates fast assembly of the modular scaffolding: by inserting the wedge head into the rosette, the wedge drops by force of gravity into the hole and then locks.

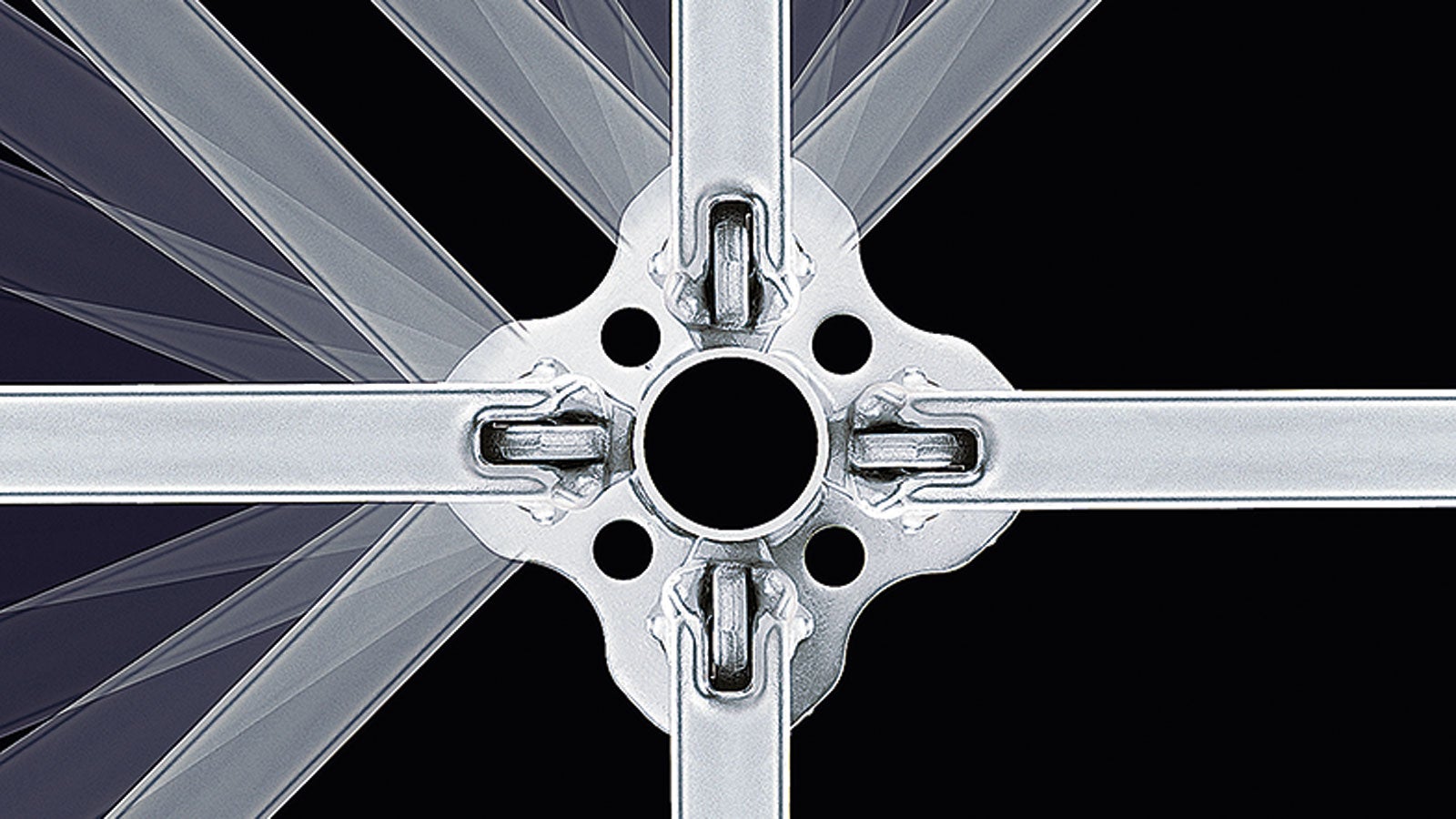

The rosette on the standard allows for connections up to 45°. The nodes at spacings of 50 cm also provide connection possibilities in all directions.
PERI UP facade scaffolding is optimally adapted to the building geometry. This allows for fast and safe mounting of the facade elements.
